Name: Chic 1/6 EzRun Max 6 SL 160 Amp Brushless ESC/1650Kv Motor Combo Now on Sale at Toy Model Shop—Shop the Trend from Oklahoma United States of America!
SKU: HWI38010801
Price: 97.99 USD
Availability: InStock

New

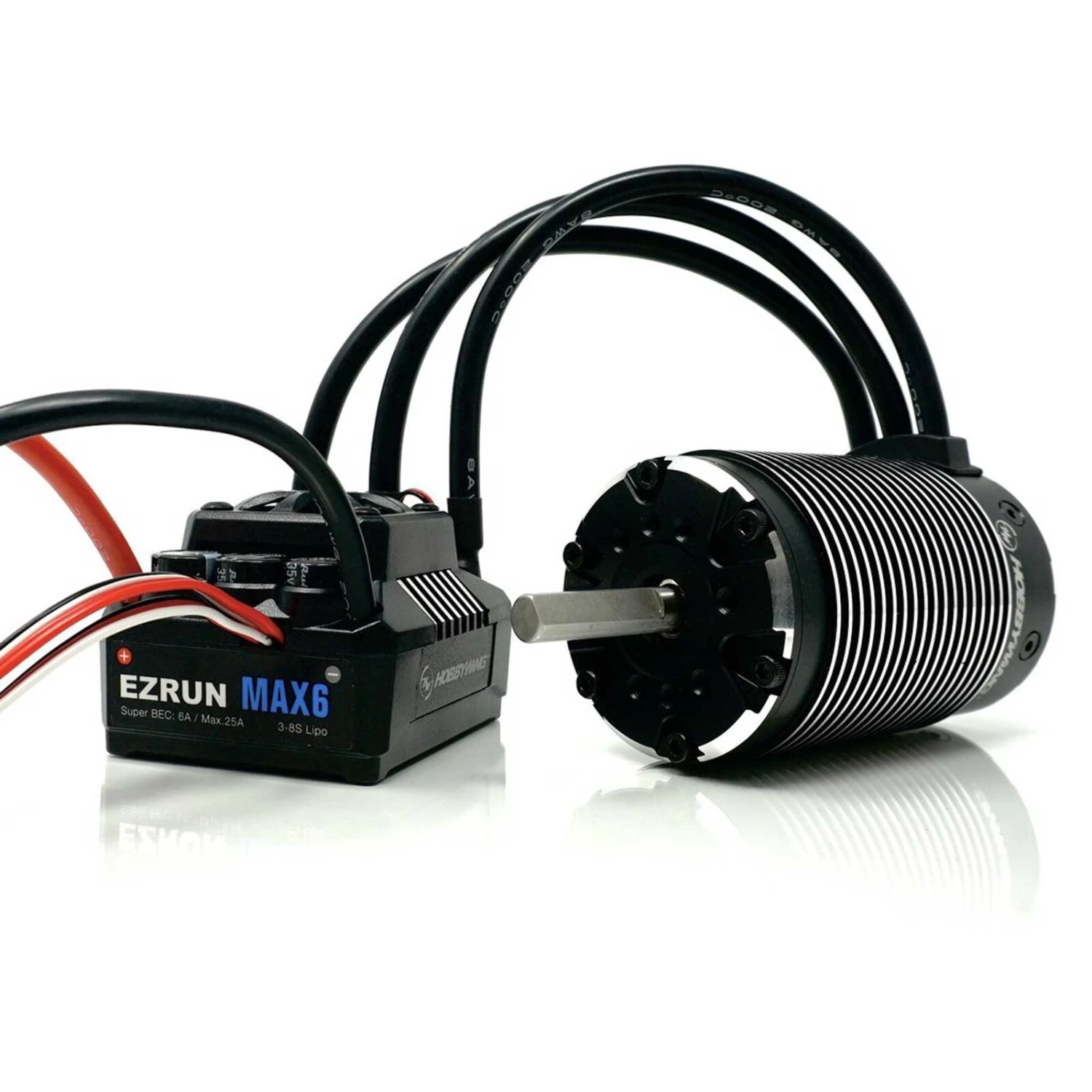

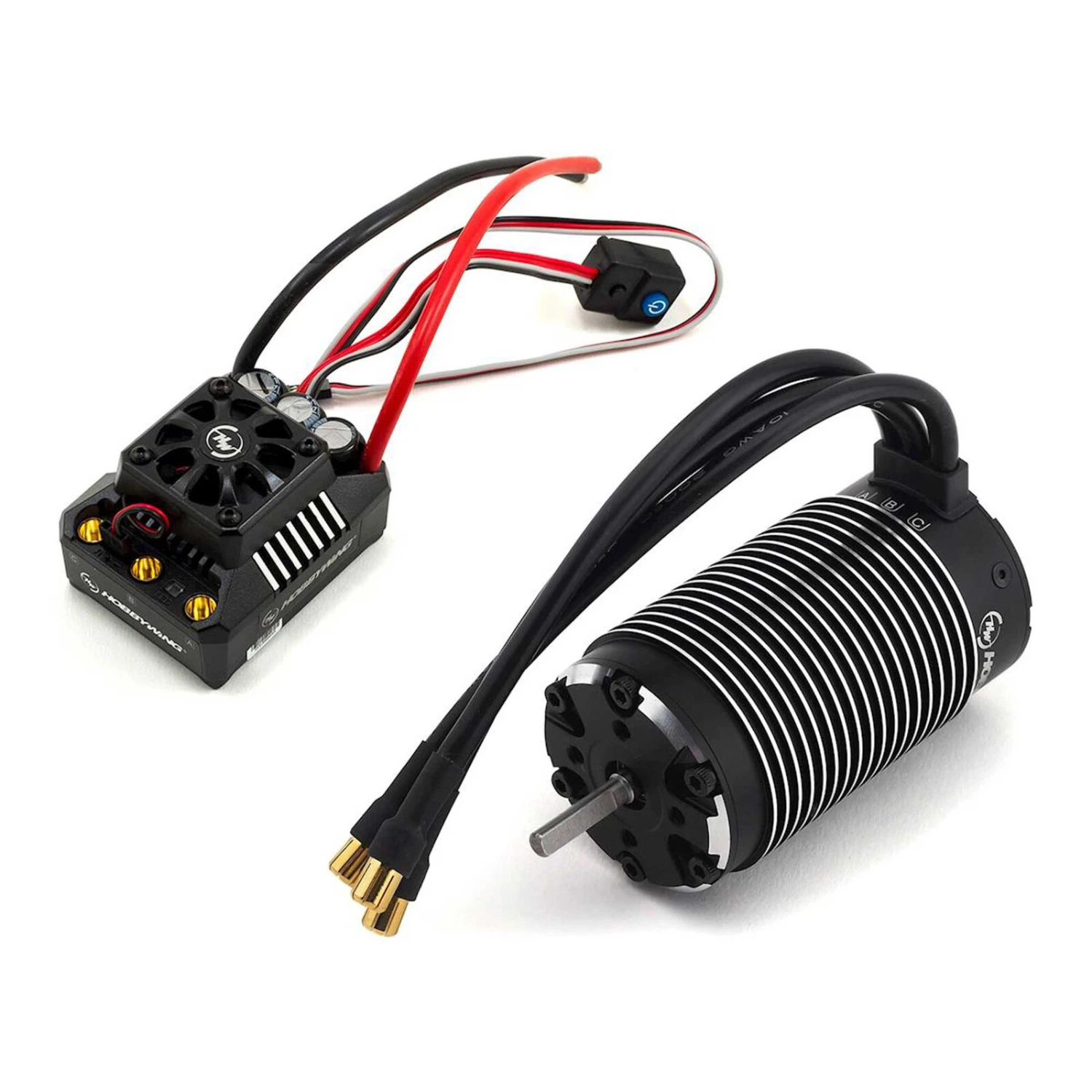

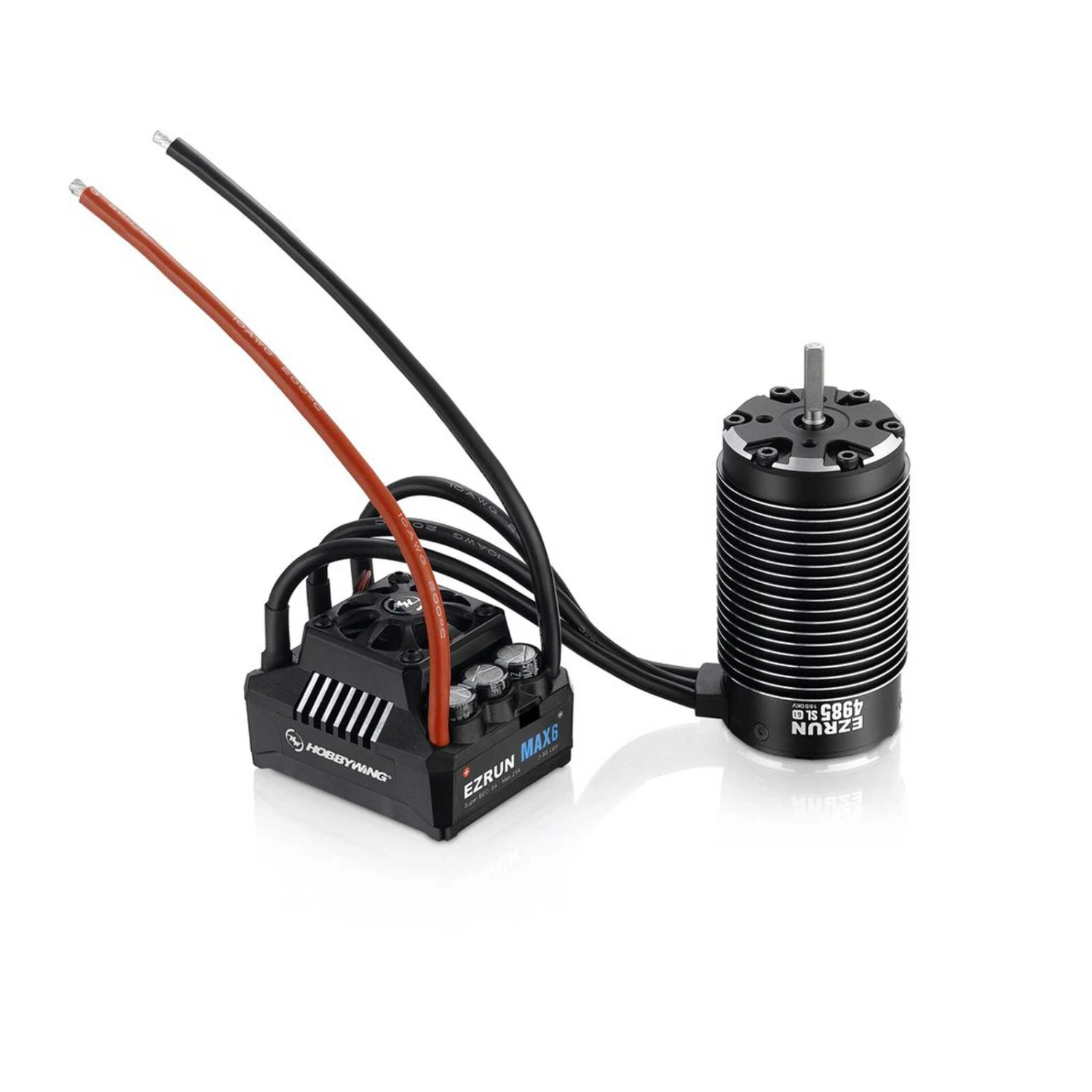

1/6 EzRun Max 6 SL 160 Amp Brushless ESC/1650Kv Motor Combo

1/6 EzRun Max 6 SL 160 Amp Brushless ESC/1650Kv Motor Combo - Image 2

1/6 EzRun Max 6 SL 160 Amp Brushless ESC/1650Kv Motor Combo - Image 3

1/6 EzRun Max 6 SL 160 Amp Brushless ESC/1650Kv Motor Combo -Toy Model Shop HWI38010801 A01 YR375E2I

1/6 EzRun Max 6 SL 160 Amp Brushless ESC/1650Kv Motor Combo -Toy Model Shop HWI38010801 A02 YR375E2I

Original price was: $256.99.Current price is: $97.99.

SKU: HWI38010801 Categories: Cars & Trucks, Parts, Electronics & Accessories Tag: HOBBYWING NORTH AMERICA

Online assistance, always at your service.
Unbeatable Quality, Unbeatable Value
Shop with confidence, enjoy free returns.
Uncompromising quality, every time.

Description
Reviews (0)

ESC Features

Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).
Fully waterproof design for all weather conditions.
Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont. /peak current of 6A/25A for easily driving big torque servos and high voltage servos.
Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
The built-in spark-proof circuit effectively protects not only battery and ESC connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks produced at the battery and ESC connecting moment.
Separate programming port to easily connect the LED program card or the LCD program box to the ESC. (purchase separately)

Proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
5 levels of acceleration /punch from soft to aggressive for different vehicles, tires and tracks.
Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
Single-button ESC programming and factory reset.
Advanced programming via portable LED program card or multifunction LCD program box. (purchase separately)
Firmware upgrade via HOBBYWING multifunction LCD program box (item sold separately).

Motor Features

4 pole rotor for high torque, fast acceleration response and stable power output.
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
CNC machined aluminum housing, high purity copper windings,advanced rotor structure,0.2mm silicon steel laminations,high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness.

Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/5 ESC.
Temperature sensor port provides all-round protection to the power system (Hobbywing will develop some ESCs with the motor thermal protection function to pair these motors in future).

ESC Features

Product Specifications

Motor Design	Inrunner
Maximum Burst Current	1050A
Maximum Continuous Current	160A
Motor Type	Brushless
Speed Control	Included
Reverse	Yes
Shaft Diameter	0.196″ (5 mm)
Water-Resistant	Yes
Resistance	0.0053ohms
Connector Type	None
Auto Cutoff	Yes
Number of Poles	4
Overload Protection	Yes
Product Weight	ESC, 8.46oz (240g), Motor, 20.71oz (587g)
BEC	Yes
BEC Voltage	6V/7.2V adjustable, 6A
Idle Current (Io)	5.4A
Input Voltage	3 – 6S LiPo
RPM/Volt (Kv)	1650Kv
Sensored	Yes
Shaft Length	0.846″ (21 mm)
Programmable	Yes
