Overview

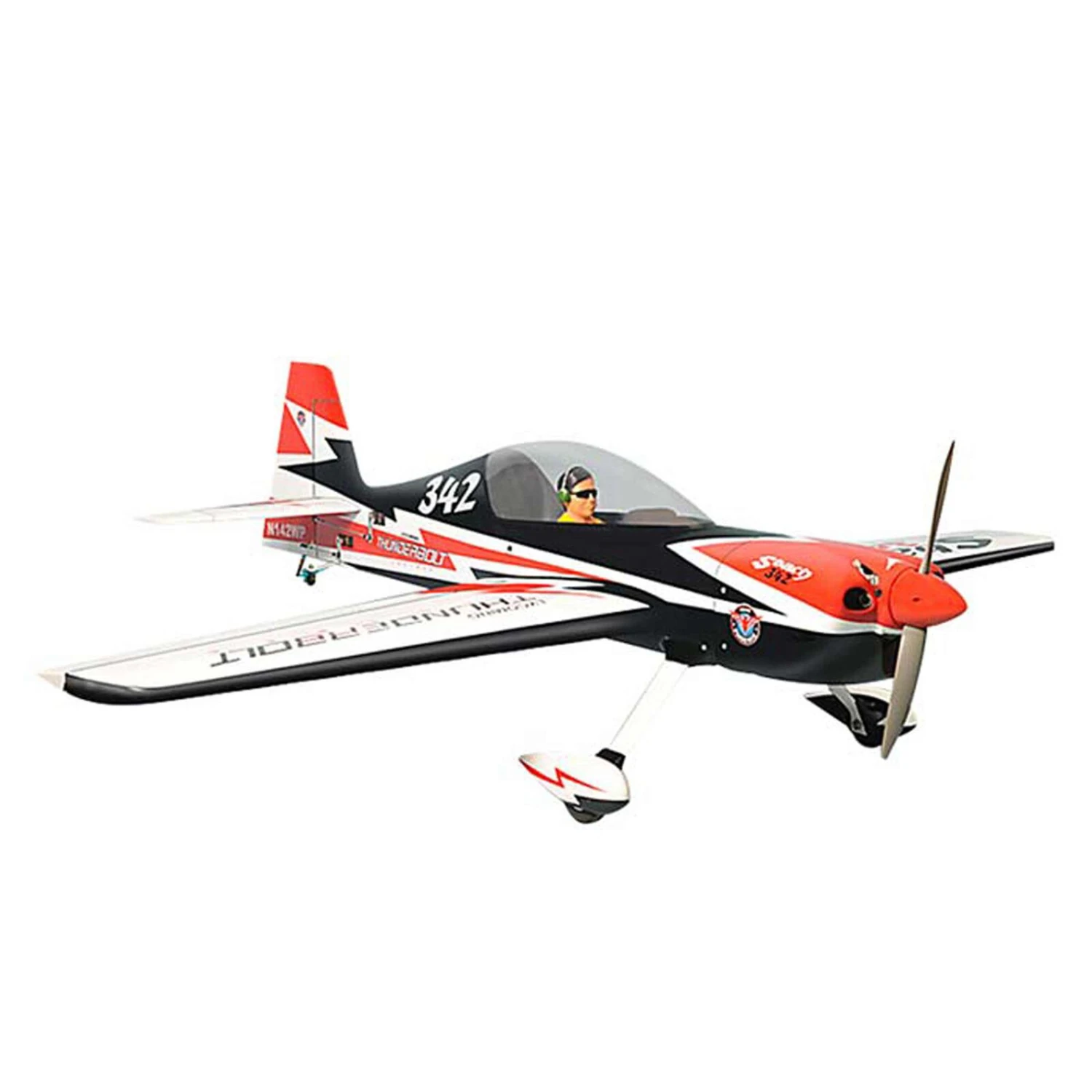

Based on the XtremeAir Sbach 342, the Phoenix Model version of this performance plane lives up to the original with maneuverability and control that is every bit as thrilling as the original! This model is a 3D masterpiece built from balsa and plywood and ready for your favorite nitro engine and radio system.
Key Features
- Construction: Laser cut balsa and ply
- Covering: High-quality film covering
- Wing: Two-piece
- Aileron Control: Dual servo
- Cowl: Factory painted fiberglass
- Canopy: Clear, with painted pilot bust
- Landing Gear: Prebent aluminum main gear, spring wire for tail gear
- Spinner: Red plastic 2-3/4″ (70mm)
Needed to Complete
- Radio: 4-channel minimum
- Servos: Six standard, 2-aileron, 2-elevator, 1-rudder, 1-throttle (if using glow engine)
- Receiver Battery: 4.8 – 6.0V (1200-2000mAh)
- Engine: 1.20 cu in (19.6cc) 2-stroke OR 1.20 cu in (19.6cc) 4-stroke
- Glow Fuel, Glow Starter, Prop, Building and Field Equipment
- Brushless Outrunner Motor: .120 Rimfire
- ESC: 80-100A to match selected motor
- LiPo Battery: 6-12S at least 4000-5500mAh
- Battery Charger: To match selected battery
- Prop, Building and Field Equipment
Glow Power:
Electric Power:
What’s in the box?

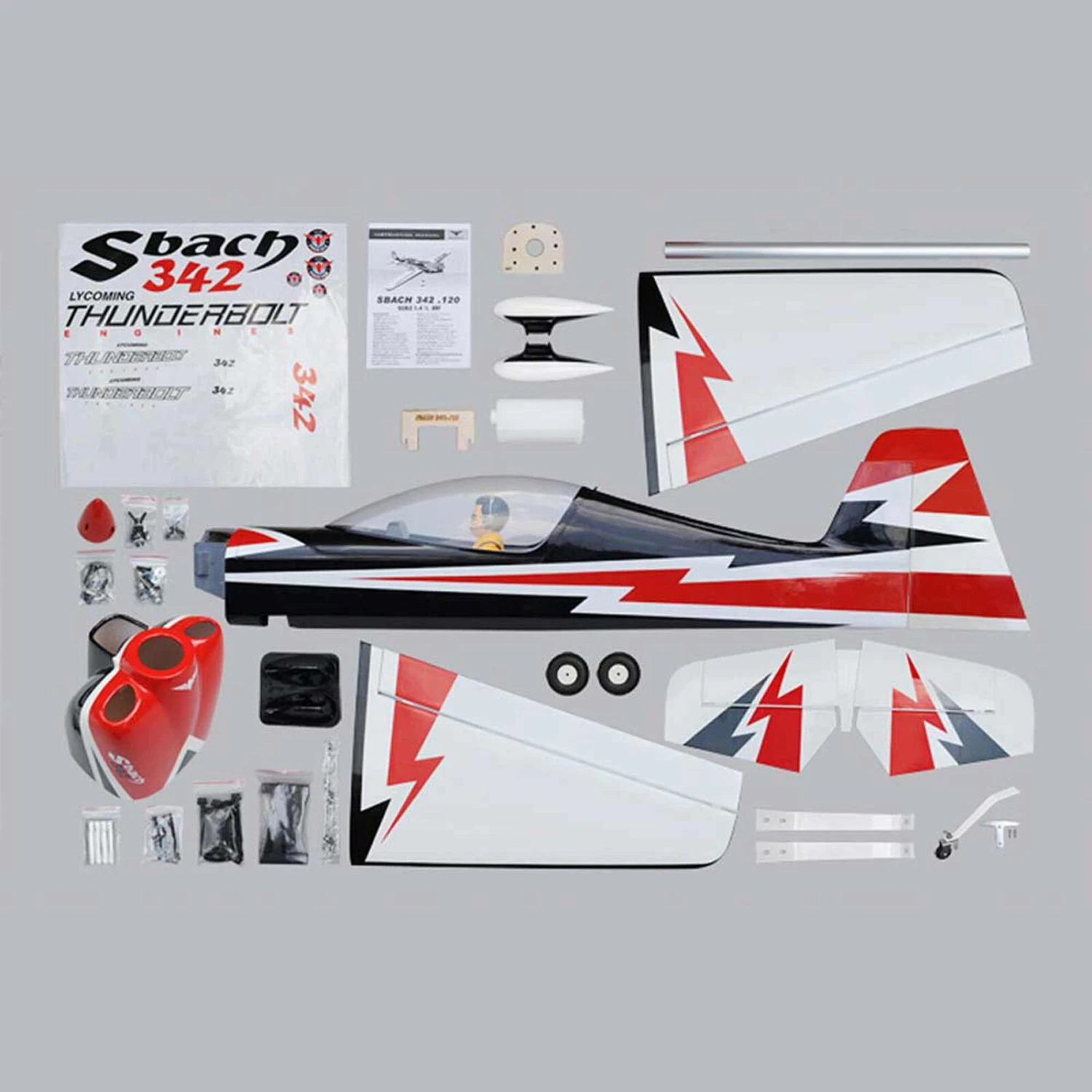

- (1) ARF Sbach 342 Aerobatic Airplane with Wheels, Spinner, Cowl, PilotBust, Fuel Tank, Canopy and Instruction Manual
Specifications
- Wingspan: 65.5″ (1663mm)
- Length: 64.5″ (1638mm)
- Flying Weight: 10.36 – 11.4 lbs (4700 – 5200 g)
- Airfoil: Naca
- Wing Area: 868 sq in (56 sq dm)
- Wing Loading: 27.85 oz/sq ft (85 g/sq dm)
- Center of Gravity (CG): 4.5″ (115mm) back from leading edge of wing at fuselage sides
- Control Throws: Low Rate   /   High Rate
- Elevator: Up & Down 0.47″ (12mm) 12% expo 0.59″(15mm) 12% expo
- Rudder: Right to Left 1.18″ (30mm) 15% expo 1.8″ (45mm) 15% expo
- Ailerons: Up & Down 0.47″ (12mm) 10% expo 0.59″(15mm) 10% expo
- Construction: Laser cut balsa and ply
- Covering: High-quality film covering
- Wing: Two-piece
- Aileron Control: Dual servo
- Cowl: Factory painted fiberglass
- Canopy: Clear, with painted pilot bust
- Landing Gear: Prebent aluminum main gear, spring wire for tail gear
- Spinner: Red plastic 2-3/4″ (70mm)
Product Specifications
| Skill Level | Level 3 |
| Wingspan | 65.5 in (1663mm) |
| Completion Level | Almost Ready-To-Fly |
| Product Length | 64.5 in (1638mm) |
| Material | Balsa |
